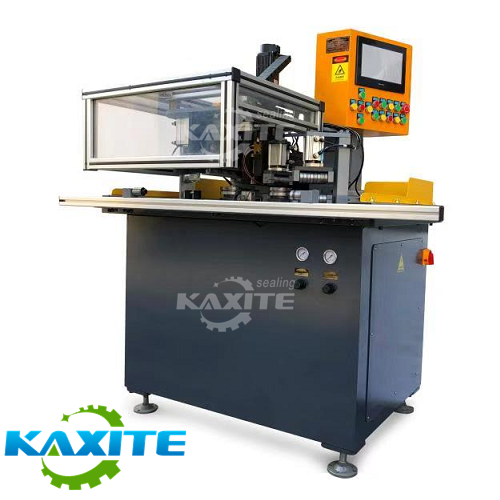

Full Automatic Camprofile Grooving Gasket Making Machine is used for making camprofile gasket, Full Automatic Camprofile Gasket Making Machine is a Professional sealing equipment to allow you to reduce the manufacturing time and very easy to operate with PLC. Can produce large-diameter gaskets such as camprofile, serrated gasket., the machine process starts from a primitive round flat metallic ring, spindled horizontally and machined by a cutting tool which removes material from the ring itself
Full Automatic Camprofile Grooving Gasket Making Machine is used for making camprofile gasket, Full Automatic Camprofile Grooving Gasket Making Machine is a Professional sealing equipment to allow you to reduce the manufacturing time and very easy to operate with PLC. Can produce large-diameter gaskets such as camprofile, serrated gasket., the machine process starts from a primitive round flat metallic ring, spindled horizontally and machined by a cutting tool which removes material from the ring itself. It also can Inner Ring Beveling and Outer Ring Grooving for Spiral wound gasket and other advanced functions.
Power: 380AV, 5KW , L x W x H = 95x 150 x 160cm , N.W.: appr. 850KGS , Thickness2-4mm.
Working life | 80,000 Hours | Weight | 850kg |
Color | Blue | power | 5kw |
Gasket nominal thickness | 2-4mm | Voltage | 380/220V |
Metal Ring width | 90mm | Warranty | 2 years |
Repeatability of outer diameter | +/-0.2mm | MOQ | 1 Piece |
Inverter | HOLIP 2.2kW | Dimension | 95*150*160cm |
