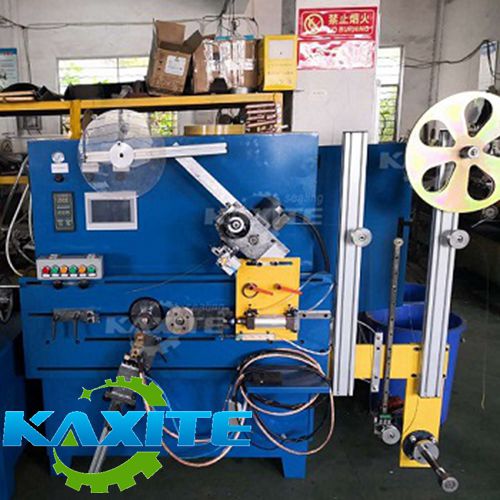

Automatic Winding Machine For Making Spiral Wound Gasket is used for making spiral wound gasket Diameter size from φ15-φ500 mm, the Automatic Winding Machine For Making Spiral Wound Gasket is designed to improve productivity, insure the repeatability of quality and operate simply. When operating, just need to feed metal strip and filler material to produce spiral wound gasket with inner ring or without inner ring from 15 mm to 500 mm gasket size. Product quantity, revolutions, gasket size and welding parameter like welding point quantity and position etc. is set simply by touch PLC screen interface.
Automatic Winding Machine For Making Spiral Wound Gasket

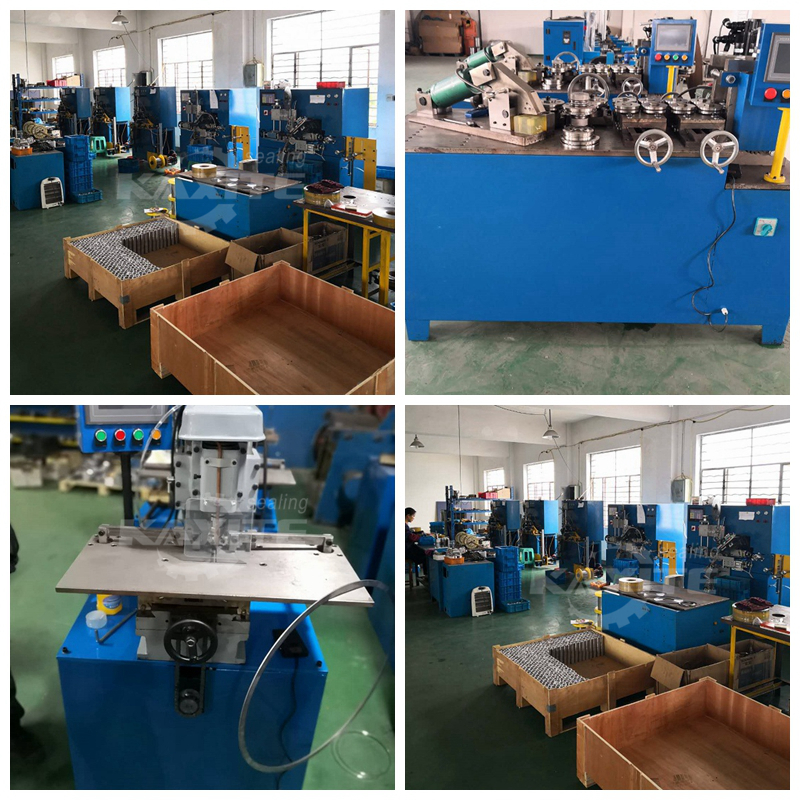

Spiral Wound Gasket Machine for SWG can make spiral wound gaskets with or without inner & outer ring, needn’t complex molds. Work pressure is changed with dia. Horizontal style is suitable roomy workshop.
Power: 380AV, 1.5KW , L x W x H = 175x 95x 150cm , N.W.: appr. 550KGS , Work Range: ID50~ 600mm,Thickness: 4.5mm, Other thickness3.2mm on request
| Working life | 80,000 Hours | Weight | 550kg |
| Color | Blue | power | 1.5kw |
| Gasket nominal thickness | 3.2mm or 4.5mm | Voltage | 380/220V |
| Maximum Outer Diameter | 600mm | Warranty | 2 years |
| Minmum inner Diameter | 50mm | Air Pressure | 6-8BAR |
| Repeatability of outer diameter | +/-0.2mm | MOQ | 1 Piece |
| Rotational Speed | 0-200rpm | Dimension | 175*95*150cm |
