Spiral Wound Gasket Inner Ring Chamfering Machine is used for machining spiral wound gasket Inner ring , Spiral Wound Gasket Inner Ring Angling Machine is used for 90° chamfering at the outer circumference of the inner ring of the winding pad above Φ 250 mm. The pressing device is pneumatic, the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.

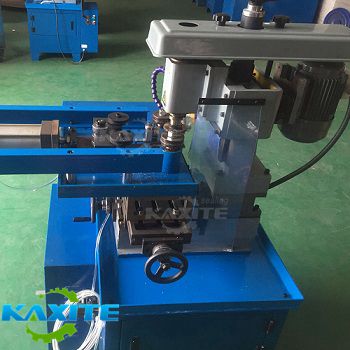

Spiral Wound Gasket Inner Ring Chamfering Machine
Spiral Wound Gasket Inner Ring Chamfering Machine is used for machining spiral wound gasket Inner ring , Spiral Wound Gasket Inner Ring Angling Machine is used for 90° chamfering at the outer circumference of the inner ring of the winding pad above Φ 250 mm. The pressing device is pneumatic, the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.
Power: 380AV, 0.88KW , L x W x H =117 x 87 x 152m , N.W.: appr.410KGS , Work Range: ID250 ~ 1000mm,Thickness: 4.5mm, Other thickness 3.2mm on request
| Working life | 80,000 Hours | Weight | 410kg |
| Color | Blue | power | 0.88kw |
| Gasket nominal thickness | 3.2mm or 4.5mm | Voltage | 380/220V |
| Maximum Outer Diameter | 1000mm | Warranty | 2 years |
| Minmum inner Diameter | 250mm | Air Pressure | 6-8BAR |
| Repeatability of outer diameter | +/-0.2mm | MOQ | 1 Piece |
| Rotational Speed | 0-200rpm | Dimension | 117*87*152cm |
More information for Spiral Wound Gasket Machine for Spiral wound gasket ,please contact with KAXITE sealing co.
