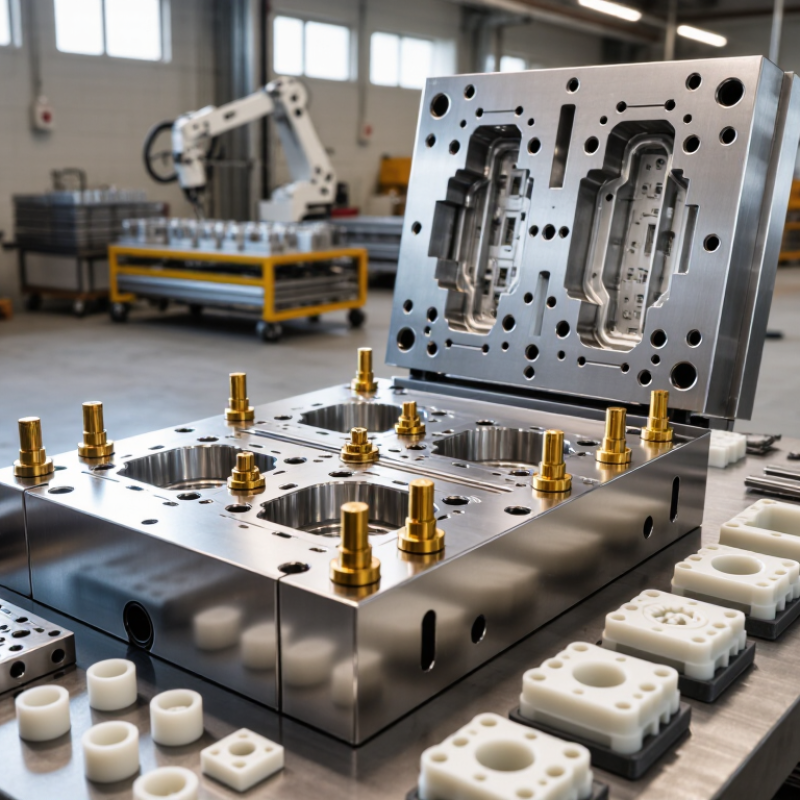

How to Calculate Injection Molding Mold Cost?

Calculating injection molding mold cost is not simply a matter of multiplying steel weight by an hourly shop rate. The real estimate begins with the product itself: part size, resin, wall thickness, tolerances, surface finish, and expected production volume. A small prototype mold may cost a few thousand dollars, while a complex, hardened-steel production mold can exceed $100,000. The difference is substantial.

Douglas M. Bryce, a recognized plastics consultant and author of Plastic Injection Molding, wrote, “The mold is the heart of the injection molding process.” That observation remains practical today. A mold controls part quality, cycle time, maintenance needs, and long-term production stability. Therefore, injection molding mold cost should be evaluated as an investment, not an isolated tooling fee.

Several details deserve close inspection. A two-plate mold usually costs less than a three-plate design. Hot runners, slides, lifters, unscrewing mechanisms, and automatic ejection increase both price and maintenance requirements. Steel selection also matters. P20 steel may suit moderate production, while H13 or S136 steel can support demanding cycles and better wear resistance. But cheaper tooling is not always cheaper manufacturing.

This is where estimates become imperfect. Early drawings often hide draft problems, weak shutoffs, or difficult cooling paths. A supplier may provide a low quotation, then revise it after design review. That is not automatically dishonest, but it requires careful questions. Compare cavity count, steel grade, mold-life assumptions, testing standards, spare parts, and revision terms. A reliable calculation includes these details before cutting steel.

How to Calculate Injection Molding Mold Cost?
Table of Contents [Hide]
1 Define the Main Factors That Influence Injection Mold Cost
2 Estimate Material, Design, and Manufacturing Expenses
3 Calculate Tooling, Machining, Testing, and Finishing Costs
4 Add Production Volume, Maintenance, and Delivery Considerations
5 Compare the Total Cost with Supplier Quotes and Budget Limits

Define the Main Factors That Influence Injection Mold Cost

How to Calculate Injection Molding Mold Cost?

A practical estimate starts with the part, not the mold quote. Review the part’s size, wall thickness, draft angles, undercuts, and required tolerances. A simple cover may need a two-plate mold, while a threaded component can require slides or unscrewing mechanisms. Every moving feature adds machining, fitting, and maintenance time. Cavity count also matters. One cavity costs less initially, but multiple cavities can reduce the cost per part during high-volume production.

Mold steel is another major factor. Standard pre-hardened steel may suit moderate production, while hardened steel supports longer service life. Surface texture, polishing, and appearance requirements can change the machining budget.

Cooling channels deserve close attention. Poor cooling can increase cycle time and create warpage, even when the mold looks inexpensive. Ejector pins, inserts, hot runners, and complex gates add further cost. Small details matter.

Use this basic structure: mold cost equals design and engineering, mold base, steel, machining, components, finishing, assembly, testing, and project management. Then add a contingency for design changes. Early estimates are often imperfect. A spreadsheet may show a neat number, but a trial shot can reveal sticking, sink marks, or uneven filling. Ask for a detailed quotation and compare the assumptions behind it. Check expected tool life, sampling rounds, dimensional inspection, and repair support. The cheapest mold is not always the lowest-cost option when production stops unexpectedly.

Estimate Material, Design, and Manufacturing Expenses

How to Calculate Injection Molding Mold Cost?

Estimate material, design, and manufacturing expenses separately. Mold material usually includes hardened steel, pre-hardened steel, or aluminum. Steel costs more, but it often supports longer production runs. Add the price of mold bases, inserts, cores, slides, cooling lines, and ejector components. A simple two-plate mold may need less material than a mold with lifters or side actions.

Design expenses depend on part geometry and tolerance requirements. A basic housing may require 10 to 20 engineering hours. Complex ribs, undercuts, or thin walls can increase that time sharply. Designers also review draft angles, shrinkage, gate location, and parting lines. Small changes matter. Moving a gate by a few millimeters can affect cooling and cosmetic quality.

Manufacturing typically includes CNC machining, electrical discharge machining, drilling, heat treatment, polishing, assembly, and trial runs. Ask for these items separately in a quotation. A trial may reveal flash, short shots, or uneven ejection. Corrections then create extra labor and material costs. In my early estimates, I often underestimated polishing and mold fitting. That mistake was expensive. Include maintenance, spare inserts, and a contingency of about 10 to 15 percent. The final price should also reflect cavity count, expected shot volume, delivery schedule, and required surface finish. A lower initial quote may hide limited testing or weak after-sales support. Check the assumptions carefully.

How to Calculate Injection Molding Mold Cost? - Estimate Material, Design, and Manufacturing Expenses

Illustrative cost estimate for a single-cavity, cold-runner mold with medium part complexity and an expected service life of approximately 100,000 shots

Cost Category Expense Item Calculation Basis Quantity Unit Unit Rate (USD) Estimated Cost (USD) Typical Scope
Design & Engineering Part review and DFM analysis Engineering labor 12 hours 85.00 1,020.00 Draft review, wall thickness, parting line, gates, vents, and shrinkage review
Mold design and 3D detailing CAD design labor 28 hours 95.00 2,660.00 Core, cavity, runner, cooling, ejection, and assembly drawings
Materials & Mold Components Tool steel for core and cavity inserts Steel material 35 kg 18.00 630.00 Pre-hardened or hardened mold steel selected for production requirements
Mold base Standard-size mold base 1 set 1,450.00 1,450.00 Plates, guide system, support structure, and clamping provisions
Standard mold components Purchased components 1 set 900.00 900.00 Ejector pins, return pins, springs, screws, locating ring, and nozzle components
Manufacturing & Machining CNC roughing and finish machining Machine time 42 hours 65.00 2,730.00 Milling of inserts, plates, pockets, cooling channels, and mounting features
Electrical discharge machining EDM machine time 14 hours 75.00 1,050.00 Deep ribs, sharp internal corners, narrow slots, or difficult-to-machine details
Grinding and mold-surface polishing Finishing labor 18 hours 55.00 990.00 Dimensional finishing and surface preparation based on appearance requirements
Heat treatment Specialized process 1 lot 480.00 480.00 Hardening, tempering, and stabilization where required by steel grade
Mold assembly and fitting Toolmaker labor 20 hours 60.00 1,200.00 Component fitting, alignment, ejection checks, and assembly verification
Surface treatment or texture Optional finishing process 1 lot 350.00 350.00 Light texturing, coating, or corrosion protection when specified
Testing & Quality Control Trial molding material Resin for mold trials 25 kg 4.00 100.00 Material for initial shots, process adjustment, and sample evaluation
Dimensional inspection and report Quality-control labor 8 hours 70.00 560.00 Critical-dimension measurement, visual inspection, and trial report
Packaging and freight preparation Packing and handling 1 lot 180.00 180.00 Protective packing, rust prevention, labeling, and local freight preparation
Estimated Direct Cost Subtotal 14,300.00 Before contingency
Recommended Contingency Reserve 1,144.00 8% of direct cost for design changes and rework
Estimated Total Mold Cost 15,444.00 Indicative total in USD
Cost assumptions: The estimate covers a medium-complexity, single-cavity mold with a cold runner, conventional ejection, standard cooling, moderate surface finishing, and one initial trial cycle. Actual pricing varies with cavity count, mold size, steel grade, part tolerances, undercuts, hot-runner requirements, surface texture, expected shot life, and the number of design revisions.

Calculate Tooling, Machining, Testing, and Finishing Costs

How to Calculate Injection Molding Mold Cost?

A reliable mold estimate starts with the tooling scope, not a single hourly rate. Define the part size, cavity count, expected production volume, material, and mold life. A simple formula is: total mold cost equals tooling, machining, testing, and finishing costs. I have found that unclear parting lines often create the largest estimating errors.

Tooling covers mold design, steel, standard components, cooling channels, and inserts. More cavities can reduce piece cost but increase design and alignment demands. Machining costs depend on milling time, drilling, electrical discharge work, tolerances, and surface complexity. Deep ribs and thin walls usually require extra attention. Small details matter.

Testing needs a separate allowance. Trial shots can reveal flash, short fills, warping, or difficult ejection. Include material, machine time, operator labor, dimensional checks, and possible mold adjustments. Finishing may involve polishing, texture preparation, coating, cleaning, and final inspection. Keep these items visible in the quotation. The estimate will not be perfect. It should still explain its assumptions. A practical review compares the planned cost with similar molds, then challenges unusual allowances instead of hiding them. That habit improves reliability over time.

How to Calculate Injection Molding Mold Cost?

Typical planning ranges for a single-cavity production mold are shown below. The estimate includes tooling engineering, machining and mold construction, testing, and finishing or surface treatment.

A practical preliminary estimate is calculated by adding each cost category. For this example, the expected mold cost is approximately USD 9,300–28,500. Machining and mold construction normally represent the largest share, while complexity, steel grade, cavity count, tolerances, and required surface finish can significantly change the final price.

Add Production Volume, Maintenance, and Delivery Considerations

Injection mold cost should be calculated against production volume, not only the toolmaker’s quotation. A 2024 Grand View Research report valued the global injection-molded plastics market at approximately USD 265 billion in 2023. This scale explains why a low-cost mold can become expensive when output increases. Divide the mold price by expected parts, then add machine time, resin, labor, inspection, and scrap. For example, a USD 30,000 mold producing 500,000 parts adds USD 0.06 per part before operating costs. Cavitation matters. An eight-cavity mold may reduce cycle cost, but it usually requires higher precision and maintenance spending.

Maintenance needs its own allowance. The Plastics Industry Association reports that preventive maintenance reduces unplanned downtime in manufacturing operations, although actual savings vary by process. In practical mold programs, teams track shot count, vent condition, gate wear, cooling performance, and polishing needs. A maintenance reserve of 5% to 15% of initial mold value is often a reasonable planning range. It is not a universal rule. A glass-filled resin, abrasive additive, or frequent color change can raise this figure sharply. Keep records. Memory is unreliable.

Delivery also changes the true mold cost. Include design revisions, trial shipments, packaging, insurance, customs processing, and expedited freight. A 2023 report from the International Transport Forum showed that logistics disruptions can significantly increase transport time and cost. Therefore, calculate both standard and urgent delivery scenarios. A USD 2,000 freight saving may be meaningless if it delays launch by three weeks. This estimate remains imperfect; actual cost depends on steel grade, tolerance, supplier capability, and local service access. Review the quotation after the first production trial.

Compare the Total Cost with Supplier Quotes and Budget Limits

How to Calculate Injection Molding Mold Cost?

A reliable mold-cost estimate starts with more than the supplier’s headline price. List the number of cavities, mold steel, part size, surface finish, cooling design, and expected production volume. A single-cavity mold may cost less initially, but it can increase cycle time and labor costs. A multi-cavity mold requires more precise balancing and higher validation effort. Include hot-runner systems, slides, lifters, interchangeable inserts, sampling, inspection, packaging, and freight.

Compare supplier quotes line by line. Ask whether each price includes design reviews, mold-flow analysis, trial shots, dimensional reports, corrections, and delivery. Check the assumed steel grade and tool-life target. One supplier may quote 8,000 shots, while another assumes 500,000. These are not equivalent offers. Request a cost table with tooling, engineering, testing, transport, taxes, and maintenance separated. Small omissions become expensive later.

Set a firm budget limit before negotiations. Then calculate the acceptable cost per molded part across the planned volume. A cheaper mold can become costly if it needs frequent polishing or produces unstable dimensions. I once focused too heavily on the initial quote and overlooked spare inserts. That comparison was incomplete. Leave a contingency of around 10% to 15% for approved design changes, extra trials, or unexpected machining work. Still, the allowance should have a clear reason, not become a hiding place for weak estimating.
